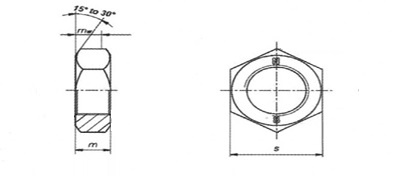

M DİŞ ÖLÇÜSÜ |
P DİŞ ADIMI |
S ANAHTAR AĞZI |
m KALINLIK |
BİRİM AĞIRLIK gr |
||
| DIN 439 | DIN 936 | DIN 439 | DIN 936 | |||
| M6 | 1,00 | 10,0 | 3,2 | 3 | 1,5 | 1,5 |
| M8 | 1,25 | 13,0 | 4,0 | 5,0 | 3,2 | 4,0 |
| M10 | 1,50 | 17,0 | 5,0 | 6,0 | 7,2 | 8,6 |
| M12 | 1,75 | 19,0 | 6,0 | 7,0 | 10,4 | 12,1 |
| M14 | 2,00 | 22,0 | 7,0 | 8,0 | 15,9 | 18,2 |
| M16 | 2,00 | 24,0 | 8,0 | 8,0 | 20,5 | 20,5 |
| M20 | 2,50 | 30,0 | 10,0 | 9,0 | 36,5 | 35,0 |
|
Malzeme : 6 KALİTE ÇELİK / 8 KALİTE ÇELİK / 10 KALİTE ÇELİK 304 PASLANMAZ (A2 İNOX) / 316 PASLANMAZ (A4 İNOX) |
||||||
